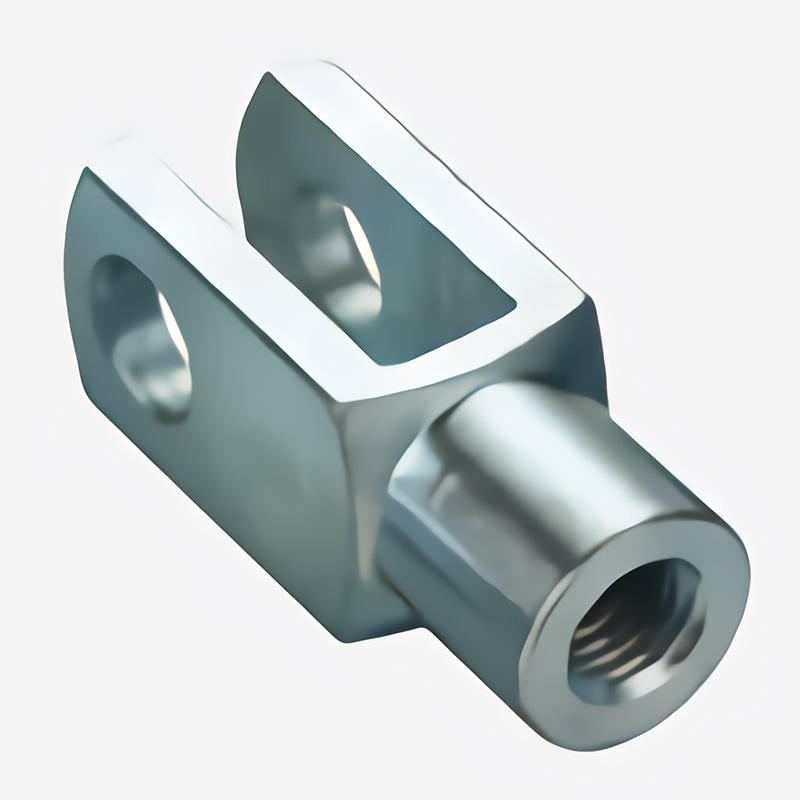

DIN 71752 standard Clevis,M18-M48

DIN 71752 standard Clevis,M18-M48

[email protected] Contact Us
  • Description
  • Additional Information
  • Feedback

  • Part NO.

    Dimensions

    mm

    Weight

    kg

    d1

    g

    a1

    a2

    b1

    b2

    d2

    d3

    f

    L1

    L2

    L3

    r

    H9

    ±0.5

    h11

    +0.50

    -0.20

    B13

    +0.70

    -0.15

    ±0.3

    ±0.2

    ±0.5

    ±0.4

    ±0.3

    ±0.5

    G18X36

    18

    36

    36

    36

    18

    18

    M18X2.5

    30

    1.0

    94

    72

    27

    1.5

    0.39

    G18X36FG

    18

    36

    36

    36

    18

    18

    M18X1.5

    30

    1.0

    94

    72

    27

    1.5

    0.39

    G20X40

    20

    40

    40

    40

    20

    20

    M20X2.5

    34

    1.0

    105

    80

    30

    1.5

    0.55

    G20X40FG

    20

    40

    40

    40

    20

    20

    M20X1.5

    34

    1.0

    105

    80

    30

    1.5

    0.55

    G20X80

    20

    80

    40

    40

    20

    20

    M20X2.5

    34

    1.0

    145

    120

    30

    1.5

    0.80

    G20X80FG

    20

    80

    40

    40

    20

    20

    M20X1.5

    34

    1.0

    145

    120

    30

    1.5

    0.80

    G25X50

    25

    50

    50

    50

    25

    25

    M24X3

    42

    1.5

    132

    100

    36

    1.5

    1.10

    G25X50FG

    25

    50

    50

    50

    25

    25

    M24X2

    42

    1.5

    132

    100

    36

    1.5

    1.10

    G28X56

    28

    56

    55

    55

    28

    28

    M27X3

    48

    1.5

    148

    112

    40

    2.0

    1.50

    G28X56FG

    28

    56

    55

    55

    28

    28

    M27X2

    48

    1.5

    148

    112

    40

    2.0

    1.50

    G30X54FG

    30

    54

    55

    55

    30

    30

    M27X2

    48

    1.5

    148

    110

    40

    2.0

    1.44

    G30X60

    30

    60

    60

    60

    30

    30

    M30X3.5

    52

    1.5

    160

    120

    42

    2.0

    1.97

    G30X60FG

    30

    60

    60

    60

    30

    30

    M30X2

    52

    1.5

    160

    120

    42

    2.0

    1.97

    G35X54FG

    35

    54

    70

    70

    35

    35

    M36X2

    60

    2.0

    188

    144

    54

    3.0

    2.93

    G35X72

    35

    72

    70

    70

    35

    35

    M36X4

    60

    2.0

    188

    144

    54

    3.0

    2.93

    G35X72FG

    35

    72

    70

    70

    35

    35

    M36X2

    60

    2.0

    188

    144

    54

    3.0

    2.93

    G36X72

    35

    72

    70

    70

    36

    36

    M36X4

    60

    2.0

    188

    144

    54

    3.0

    2.93

    G36X72FG

    35

    72

    70

    70

    36

    36

    M36X2

    60

    2.0

    188

    144

    54

    3.0

    2.93

    G40X84FG

    40

    84

    85

    85

    40

    40

    M42X2

    70

    3.0

    232

    168

    63.5

    5.0

    5.64

    G42X84

    42

    84

    85

    85

    42

    42

    M42X4.5

    70

    3.0

    232

    168

    63.5

    5.0

    5.34

    G42X84FG

    42

    84

    85

    85

    42

    42

    M42X2

    70

    3.0

    232

    168

    63.5

    5.0

    5.34

    G50X96

    50

    96

    96

    96

    50

    50

    M48X5

    80

    3.0

    265

    192

    73

    5.0

    7.86

    G50X96FG

    50

    96

    96

    96

    50

    50

    M48X2

    80

    3.0

    265

    192

    73

    5.0

    7.86
    Technical Condition:
    1.Standard:DIN71752
    2.lf it is left-hand thread,then suffx"LH"will be added to the part number as thread sign,such as "G4X8LH"
    3.Material:Fe360B;Alternative material:ASTM 1020,1045,stainless steel AISI304.
    4.Surface treatment:White zinc-plated,Alternative: Yellow zinc-plated,

Close to Ningbo Beilun Port and Ningbo Lishe International Airport, 3 hours far away from Shanghai by car and train.We are enjoying convenient transportation.The company's predecessor was Ningbo Yinzhou Yunlong Xingda Automobile Fittings Factory,which established in year 1981,after continuously struggle and develop, we have become a company with strong technology, fine machines and strict quality assurance system.


Now we are a professional factory of DIN 71752 standard Clevis,M18-M48, ball joint,tie rod end,stabilizer link,linkage rod assembly,rack end,rod end bearing,spherical plain bearing,clevis,tow ball,shaft,copper fittings ,emergency valve,roller ect. Our parts are used in bus,passenger car and mixer truck.



we mainly make oem DIN 71752 standard Clevis,M18-M48. We develop and produce DIN 71752 standard Clevis,M18-M48 based on drawings or samples provided by customers.We get ISO/TS 16949:2009 quality management certificate in year 2011. First of all, we will have corresponding inspections after each process. For the final product, we will conduct 100% full inspection according to customer requirements and international standards.Relying on superior quality, excellent service and competitive price, our DIN 71752 standard Clevis,M18-M48 have been sold well in the United States, Europe,Middle East and Southeast Asia.They have been enjoying a large market share and a good reputation abroad. The product quality has reached the advanced level of similar products at home and abroad.
